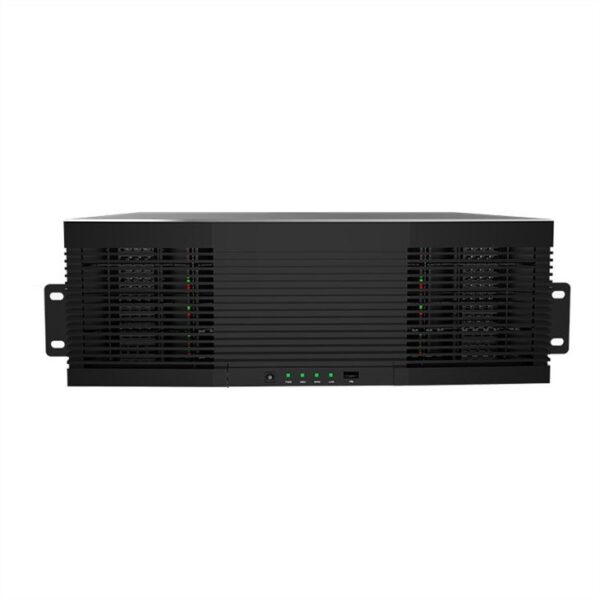

HDL-NVR8064-E16
Đầu ghi hình IP 64 kênh AI UHD
Thông số kỹ thuật
| Model | HDL-NVR8064-E16 |
| Video/Audio Input | |
| IP video input | 64-CH |
| Two-way audio input | 1-CH, RCA |
| Network | |
| Input Bandwidth | 640Mbps |
| Output Bandwidth | 640Mbps |
| Remote Users | 10 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI Output | HDMI 1-3:（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1920*1080,1600*1200，1920*1200, 3840*2160/7680*4320/EDID）Async out HDMI 4:（1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 /EDID）Async out * If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled. |
| Recording resolution | 12MP,8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Synchronous playback | 16-CH |
| Split screen mode | 1/4/8/9/16/25/36/64 |
| Decoding | |
| Video Compression | H.265/H.264/MJPEG |
| Live View/Playback | 12MP,8MP,5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Compatible | ONVIF (Profile S, Profile G, Profile T), API |
| Hard disk | |
| SATA | 16 SATA HDD |
| Capacity | up to 18TB (Enterprise-Class) |
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Smart | |
| Detect VCA | Face Detection, Pedestrian Detection, Vehicle Detection, Cross Counting, Heat Map, Crowd Density Detection, Perimeter Intrusion Detection, Line Crossing Detection, Queue Legth Detection, License Plate Detection, Rare Sound Detection (*) |
| Search VCA | Face Search, License Plate (*) |
| Statistical analysis | Counting people (*) |
| Extensible interface | |
| Network interface | 2 x 10M/100M/1000M RJ45 self-adaptive Ethernet port |
| Interface | USB: Front: 1 x USB2.0, Back: 2 x USB3.0 Alarm: 16 channels in / 4 channel out E-sata: 1 port RS232: 1 port RS485: 1 port |
| General | |
| Software Client | Support |
| Power supply | ATX 250W (AC 100-220V input) |
| Work environment | -10°C ~ +50°C, Humidity 90% RH (non-condensing) |
| Size | 440x460x149mm |
