Bullet Camera

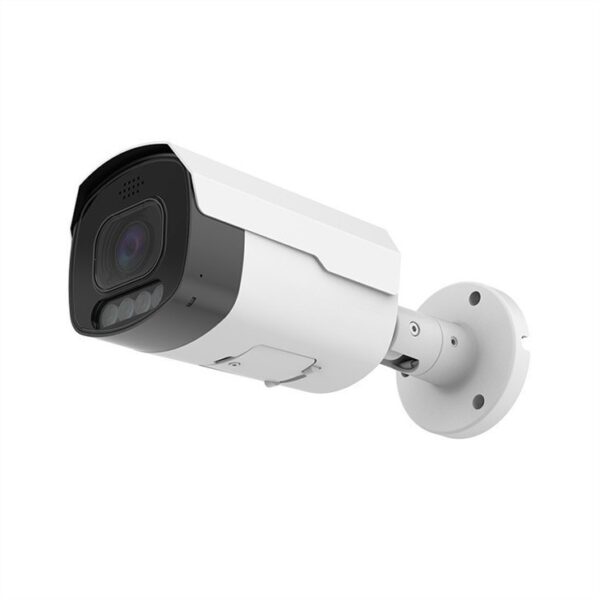

HDL-BAF228DF-Z4
Camera IP thân trụ ngoài trời 5MP
Thông số kỹ thuật
Giá: Vui lòng liên hệ 0909.490.007
| Model | HDL-BAF228DF-Z4 | |||||
| Camera | ||||||
| Imaging Device | 1/2.7″ progressive scan CMOS | |||||
| Effective Pixels | 5MP 2880×1620 | |||||
| Chipset | ARM Cortex-A7 Single Core, Clock rate up to 1.2GHz Neon and FPU Security Engines Supports AES/DES/3DES/RSA/SHA-I/SHA256 | |||||
| DRAM Memory | Embedded 1Gb 16-bit DDR3 memory | |||||
| Lens | Motorized 2.8~12mm, auto focus | |||||
| Iris | Auto | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8-12 | 63.0-270 | 25-108 | 13-54 | 6-27 | ||
| Angle of View (H) | 107°~ 35° | |||||
| Angle of View (V) | 55°~20° | |||||
| Angle of View (O) | 133°~40° | |||||
| Shutter Speed | Auto/Manual, 1/5s to 1/20000s | |||||
| Min. Illumination | Color 0.002lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON | |||||
| WDR | 120dB WDR | |||||
| Day/Night | Full Color Mode/Day&Night Mode/Schedule | |||||
| S/N | >56dB | |||||
| Illuminator Type | IR LED / WarmLight | |||||
| Illuminator Range | Up to 60m IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| Video | ||||||
| Video Compression | H.265,H.264,MJPEG | |||||
| Frame Rate | Mainstream@30fps: 5MP(2880×1620), 4MP(2560X1440), 3MP(2304×1296), 1080P(1920×1080) Substream@30fps: 720P(1280×720), VGA(640×480),QVGA(320×240) Mobilestream@30fps: VGA(640×480), QVGA（320×240） | |||||
| Video Bit Rate | 256Kbps ~ 8Mbps | |||||
| ROI | Supported | |||||
| Video stream | Three streams | |||||
| OSD | Support | |||||
| Privacy Mask | Off/On (4 Zone, Rectangle) | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Mirror | Flip/Rotation | |||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Events | ||||||
| Basic Detection | Motion detection, Tampering alarm, audio detection | |||||
| Smart Events | Face Detection, Human&Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | Support | |||||
| Suppression | Support | |||||
| Sampling Rate | 8KHZ | |||||
| Microphone & Speaker | Built-in microphone&Speaker | |||||
| Storage | ||||||
| Edge Storage | Yes, 256G | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||
| Client | Yes | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and belowPlug-in required live Not recommended: Safari 11+, Edge | |||||
| Interface | ||||||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||
| General | ||||||
| Power | DC12V(±25%), PoE(IEEE802.3af) | |||||
| Power consumption: Max 8.6W | ||||||
| Dimensions | 240x86x88mm | |||||
| Net Weight | 1.1Kg | |||||
| Upgrade | Support local software, firmware upgrade of WEB interface Support Tools batch upgrade Support cloud upgrade | |||||
| Housing Material | Full Metal | |||||
| Working Environment | -35°C ~ 60°C, Humidity: ≤95% RH (non-condensing) | |||||
| Storage Environment | -40°C ~ 70°C, Humidity: ≤95% RH (non-condensing) | |||||
| Ingress Protection | IP67 | |||||
